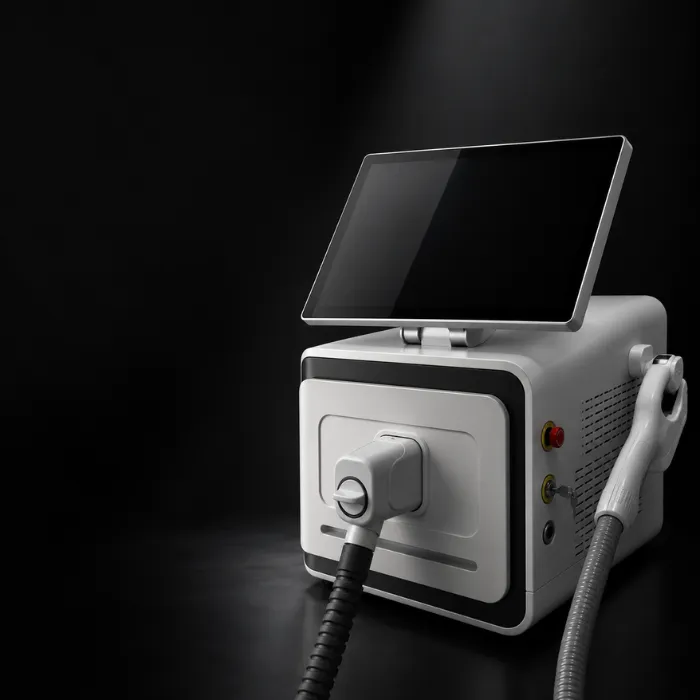

AI Powered IPL
XEN-IQ combines AI assistance, IPL technology and an intuitive Android interface to make treatment parameter selection simpler and clearer.
BYT GermanyDeveloped by BYT
AI, IPL + RF and NIR — a new generation of intelligent light-based treatments

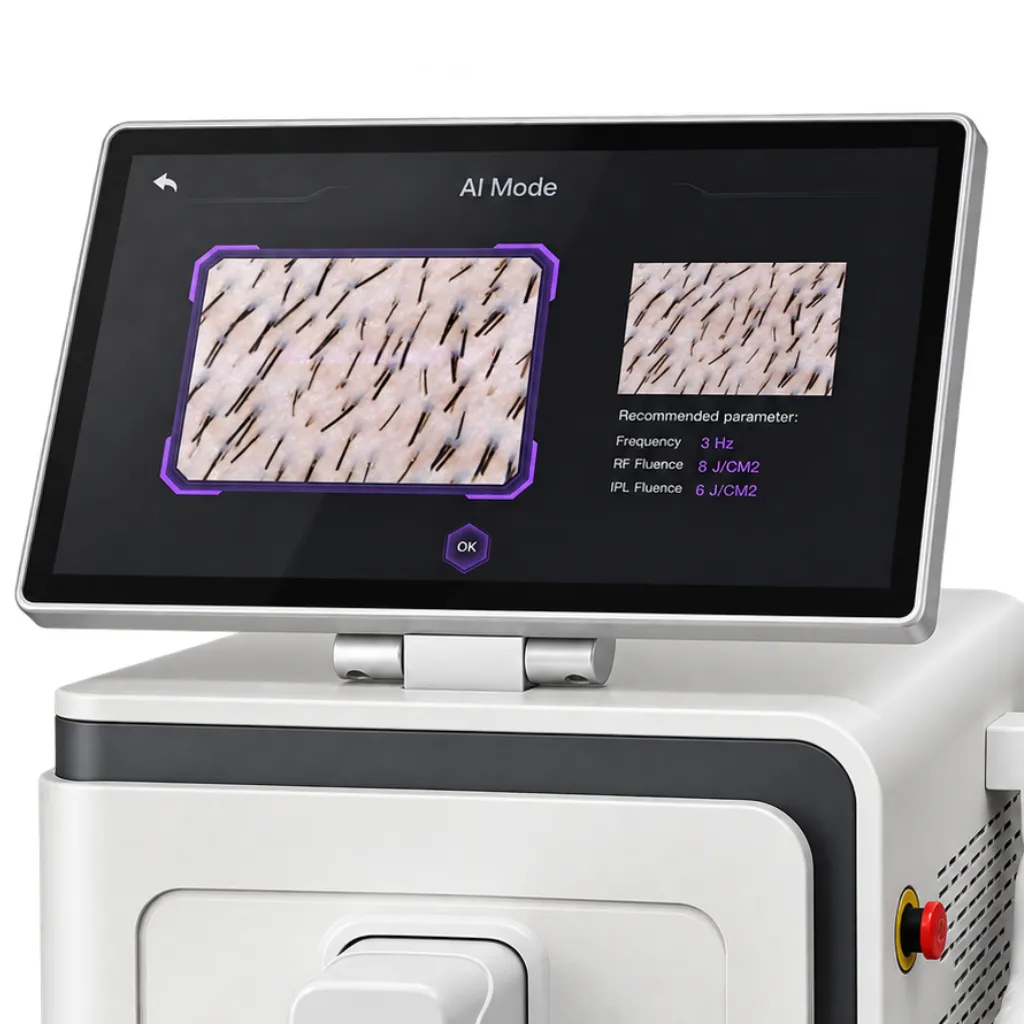

AI assistance for smarter treatment settings
XEN-IQ uses AI support to recognize hair characteristics and automatically recommends suitable parameters, making treatment setup simpler and faster.
eLight — synergy of IPL and RF energy
eLight technology combines optical IPL energy with radiofrequency. Optical energy preheats the target tissue, while RF energy is directed deeper into the preheated area, enabling the combined action of both energies.
NIR for skin rejuvenation and tightening
The dedicated NIR mode is designed for skin rejuvenation, improved tone and a fresher-looking complexion.
Dual filters for acne and vascular concerns
SWT dual-filter technology uses two wavelength ranges for targeted acne and vascular treatments. Specialized filters are available as an option.

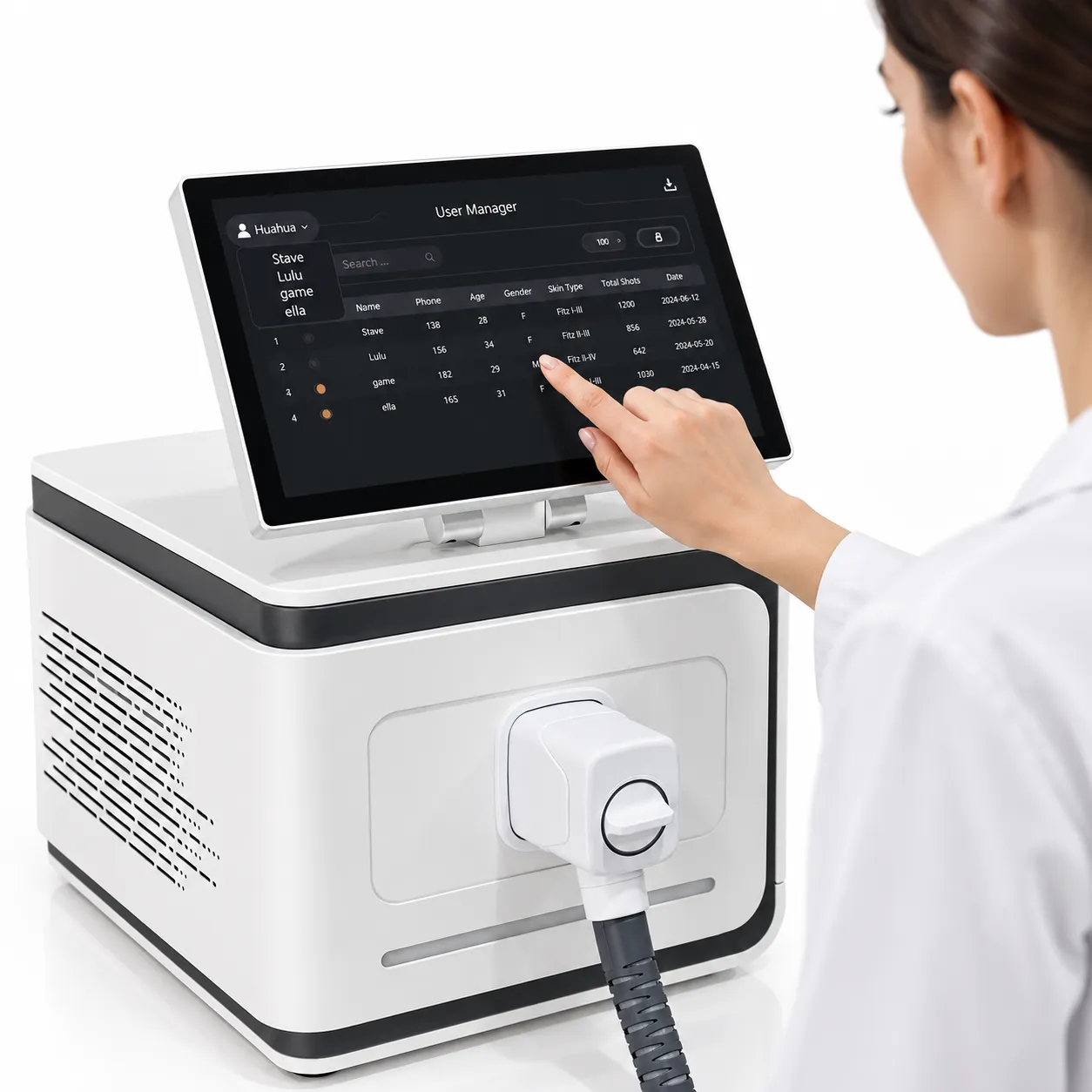

Intelligent data management platform
The large 15.6-inch Android display features integrated client database software for clear treatment management and unlimited storage of treatment parameters for each client.
Compact system with a broad treatment spectrum
XEN-IQ combines multiple operating modes for professional face and body treatments — from permanent hair reduction and photorejuvenation to acne, pigmentation and vascular treatments.

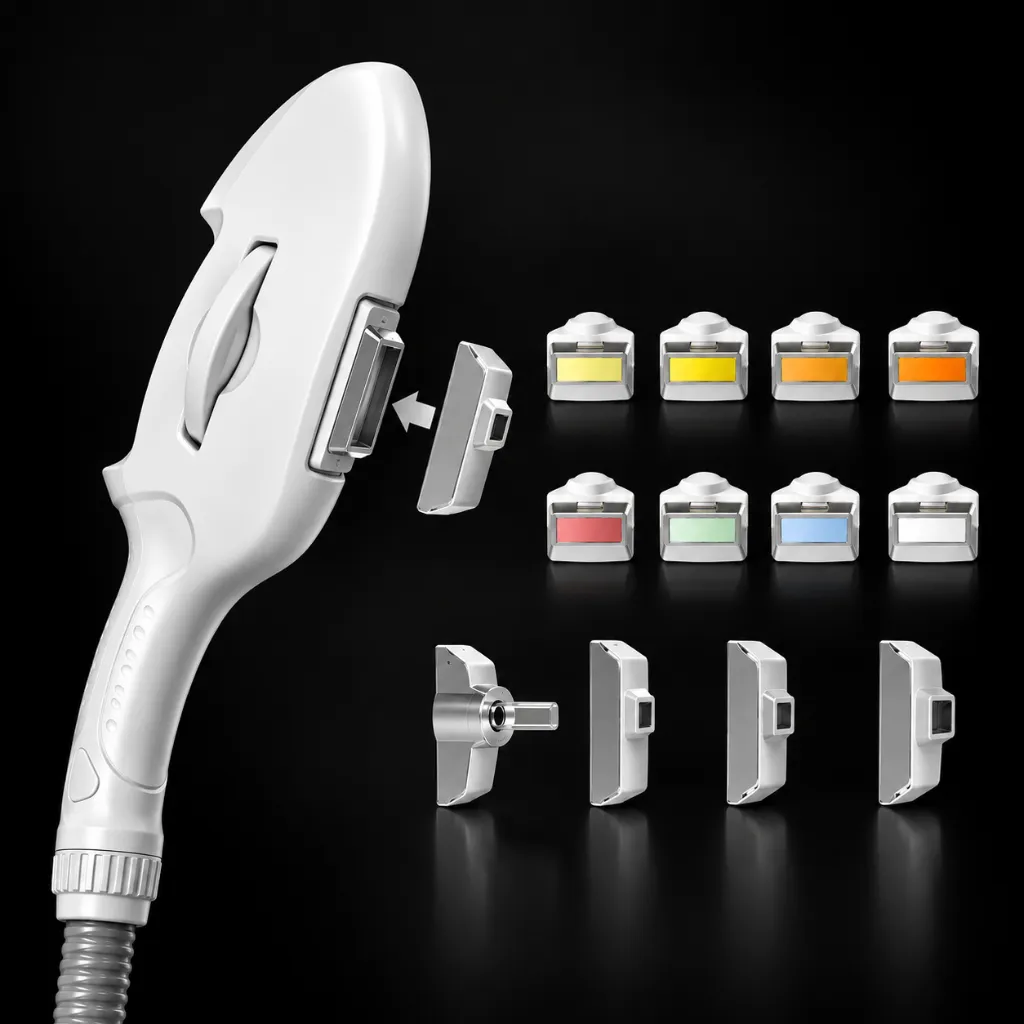

Filters and spot sizes for precise work
Standard and optional filters, together with different treatment spot sizes, allow adaptation to different indications and treatment areas.
XEN-IQ applications
FHR — fast permanent hair reduction with AI-assisted parameter selection
SSR and NIR — treatments for a renewed, fresher and firmer-looking complexion
SAR and SPR — targeted treatments for acne and pigmentation concerns
SVR and SWT — vascular treatments with specialized filters
Treatments for dry eyes and dark under-eye circles
Compact format — intelligent IPL technology
AI Powered IPL
XEN-IQ combines AI assistance, IPL technology and an intuitive Android interface to make treatment parameter selection simpler and clearer.

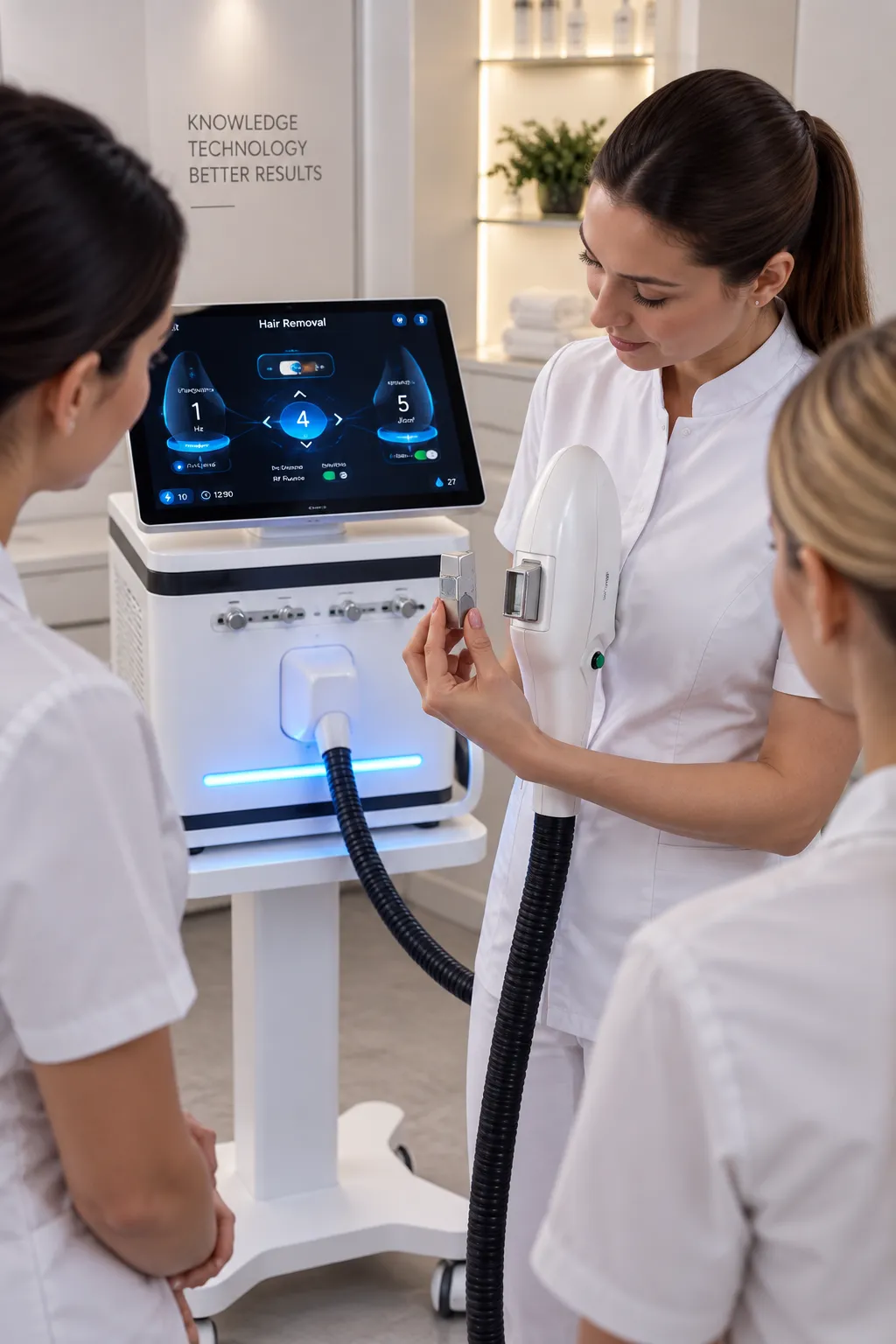

IPL + RF + NIR in one system
The combination of IPL and RF energy in eLight mode, together with the additional NIR mode, expands the range of professional treatments and enables adaptation to different aesthetic indications.

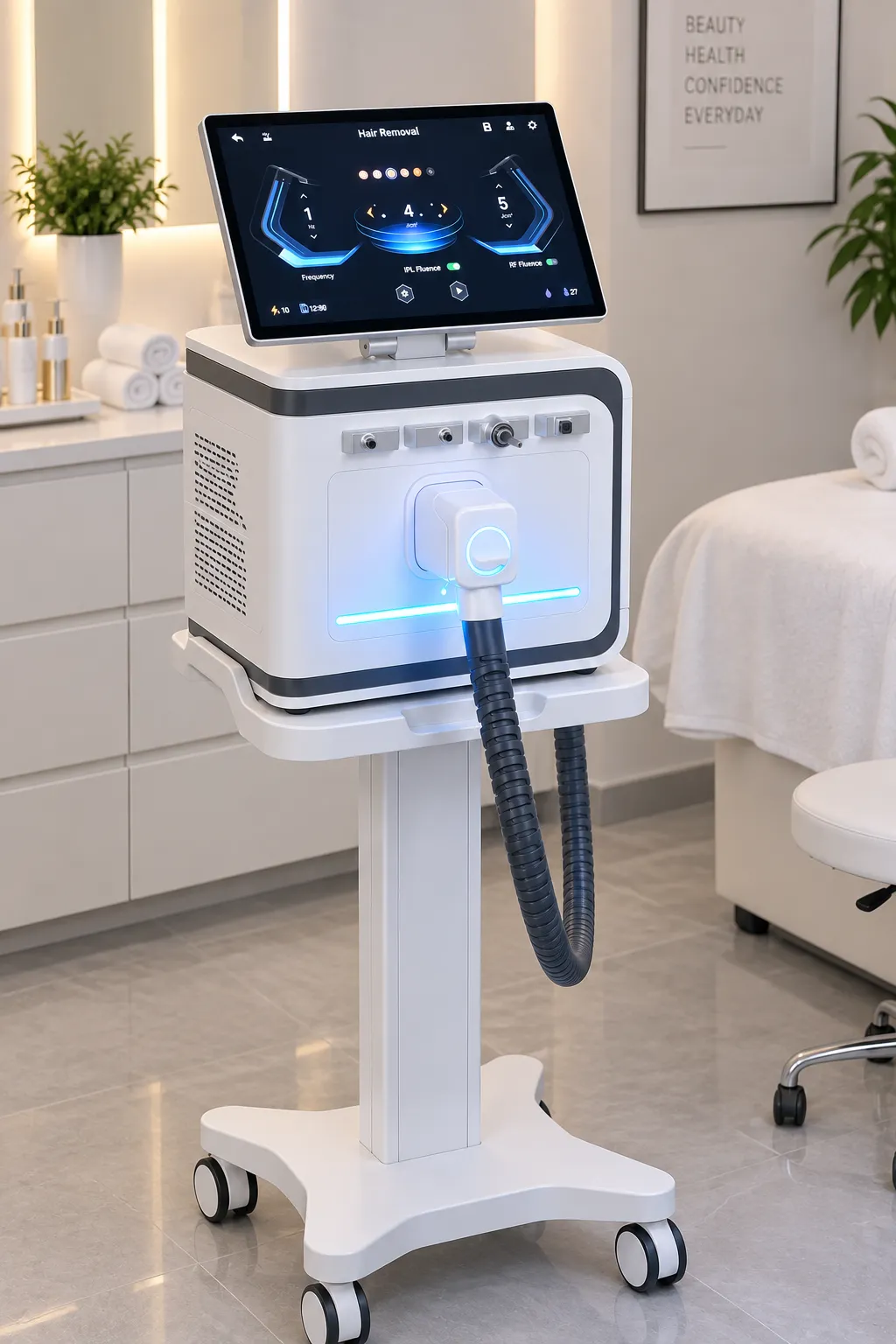

Smart control and client database
The integrated CRM system enables unlimited storage of client data and treatment parameters, while Wi-Fi and USB support simplify system upgrades.
IPL + RF + NIR in one system
The combination of IPL and RF energy in eLight mode, together with the additional NIR mode, expands the range of professional treatments and enables adaptation to different aesthetic indications.
Smart control and client database
The integrated CRM system enables unlimited storage of client data and treatment parameters, while Wi-Fi and USB support simplify system upgrades.
Technical data
All details and application areas are available in our product brochure on request.
XEN-IQ device
TechnologyIPL · RF (eLight) · NIR · AI
IPL energy1–50 J/cm²
RF energy1–50 J/cm²
Device power2500 W
Display15.6” Android touchscreen
Modes, filters and spot sizes
FrequencyFHR 1–12 Hz · SSR 1–3 Hz · NIR 1–30 Hz · SWT 1 Hz
Standard spot sizes12 × 30 mm · 15 × 50 mm
Optional spot sizesØ 6 mm · Ø 8 mm · 10 × 10 mm · Ø 5,6 mm
Standard filters480 nm · 530 nm · 590 nm · 640 nm · 690 nm · NIR
Optional filtersSWT Acne · SWT Vascular
System and control
AI assistanceRecognition of hair characteristics and recommendation of treatment parameters
Client databaseCRM · unlimited storage of treatment parameters
ConnectivityWi-Fi · USB upgrade · remote update
Rental systemYes
CoolingTEC · water · stainless-steel radiator
